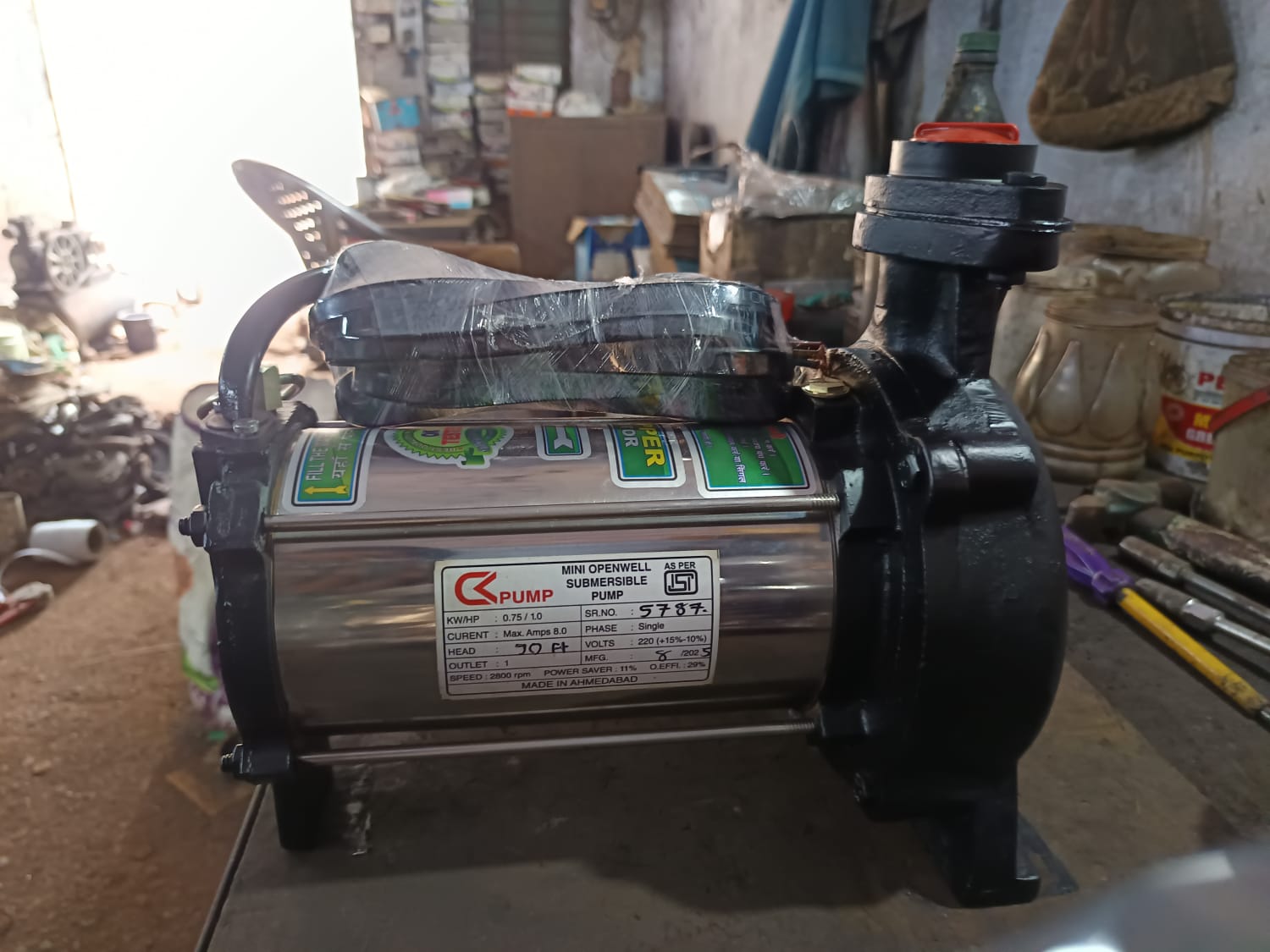

This is a C.K. PUMP Mini Openwell Submersible Pump. This type of pump is designed to be fully submerged in water within an open well, sump, or tank for operation. The body is made of durable stainless steel to prevent corrosion. It’s a compact, horizontal pump primarily used for lifting water from underground sources to overhead tanks or for agricultural and industrial water supply.
Technical Specifications
The label provides the following performance data for the pump:
- Brand: C.K. PUMP
- Model Type: MINI OPENWELL SUBMERSIBLE PUMP
- ISI Certified: The pump carries the ISI Mark (IS: 14220), indicating it meets the quality standards set by the Bureau of Indian Standards (BIS).
- Power (kW/HP): 0.75 / 1.0 (This suggests the pump is a 1.0 HP model).
- Phase: Single
- Current: 6.0 Amps
- Voltage: 220 V (Range: 10%)
- Head: 30 FT (Feet)
- Speed: 2880 RPM (Revolutions Per Minute)
- Manufacturer Location: Made in Ahmedabad
Key Features and Applications
- Submersible Operation: Designed to be completely submerged in water. This allows it to cool efficiently, eliminating the need for manual priming.
- Openwell Type: Suitable for use in open wells, large tanks, sumps, and reservoirs where the water level fluctuates.
- High Power: At 1.0 HP, it offers good power for pumping a significant volume of water to moderate heights.
- Stainless Steel Body: The steel casing provides excellent corrosion resistance and durability, extending the pump’s lifespan in harsh water conditions.
- Domestic and Light Agricultural Use: Ideal applications include:
- Pumping water from an underground sump to an overhead tank in homes.
- Small-scale irrigation for gardens or farms.
- Industrial and construction dewatering.
Borewell Submersible Pumpsets
Item Code: SR-S6G-S6E-S6S-SM-Series
150 mm (6”) Borewell Submersible pumpsets are built with different materials of construction together with extremely hardwearing bushes which makes this pumpsets highly durable. Radial flow submersible pumpsets are supplied with stainless steel impellers and stage casings and mixed flow pumpsets are supplied with LTB-2 and casted steel impellers to give better performance and longer life. The optimal design of impellers and diffusers offers best possible hydraulic efficiency. These pumpsets are powered by a water filled, rewindable submersible motor suitable for continuous duty. The stator is wound with special water proof synthetic film insulated copper winding wires and made up of low watt loss silicon steel laminations assembled under pressure and rigidly locked in stainless steel stator shell. Specially designed high performance thrust bearings (SS with Carbon) are used to withstand axial and down thrust loads with minimum wear and tear. Dynamically balanced rotor gives vibration free and noise free operation, thereby increases efficiency and life cycle of the motor.
We want local enquiry from Gujrat and Ahmedabad
